Megger SKF Baker Instruments AWA-IV 12 KV Static Motor Tester/ Analyzer

$32,999.98

1 in stock

Category:
Description

Megger SKF Baker Instruments AWA-IV 12 KV Static Motor Tester/ Analyzer

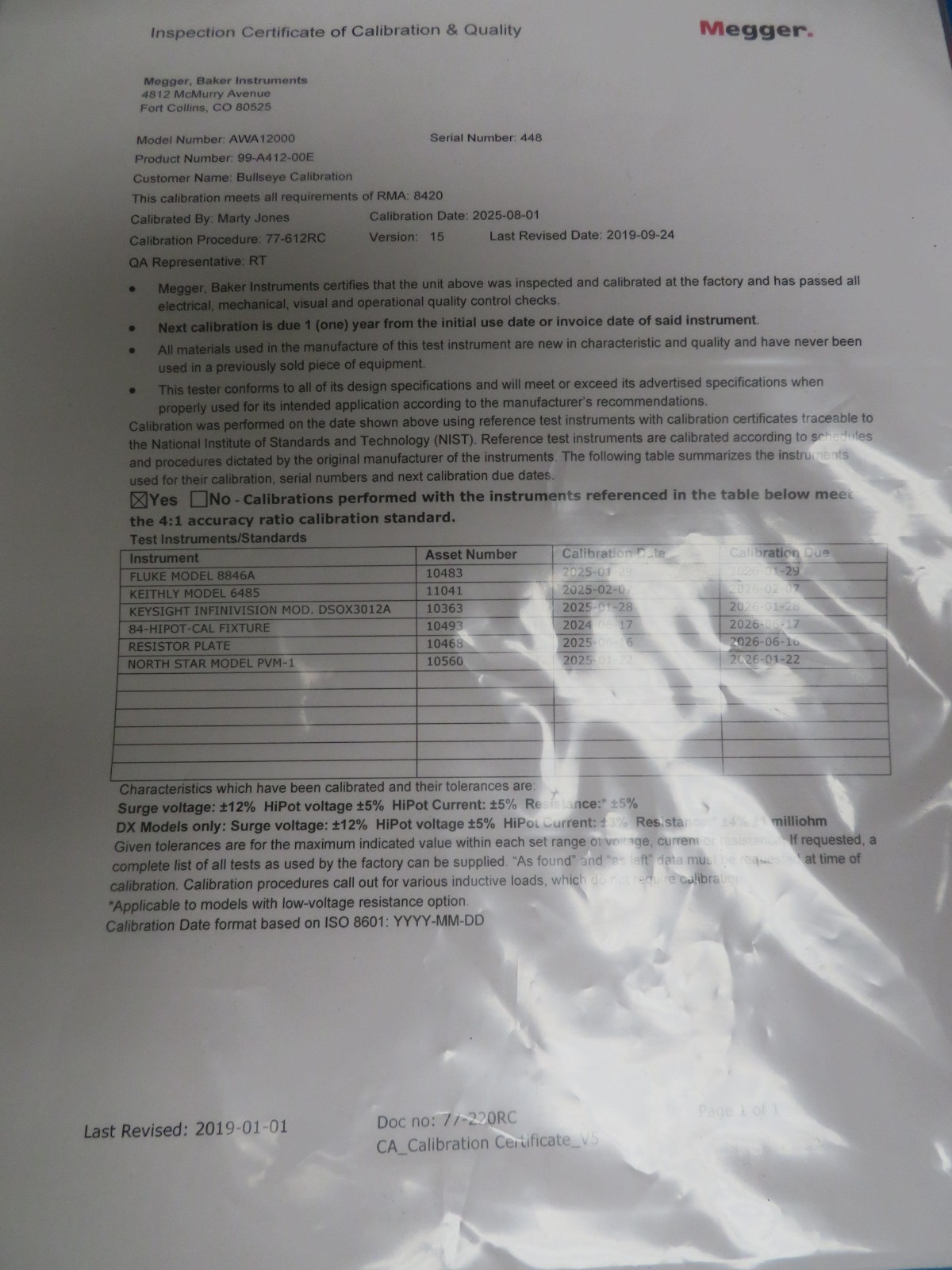

Rebuilt and Calibrated by Megger/Baker instruments.  Includes the certificate of calibration

About the product
Range includes 2 kV, 4 kV and 12 kV models
Testing capabilities include: surge, winding resistance, Megohm, PI, DA, continuous ramp DC step-voltage, and DC hi-pot tests
12 kV HO (high-output) version for performing surge tests on large motors and generators
Compatible with Baker PPX Power Packs to extend insulation testing voltage range  (12 kV, and 12 kV HO versions only)
IEEE- and IEC-compliant surge test
Surge waveform comparison by the patented Pulse-to-Pulse Error Area Ratio (PP-EAR) technique
Incorporates advanced inter-turn assessment capabilities in a field portable instrument

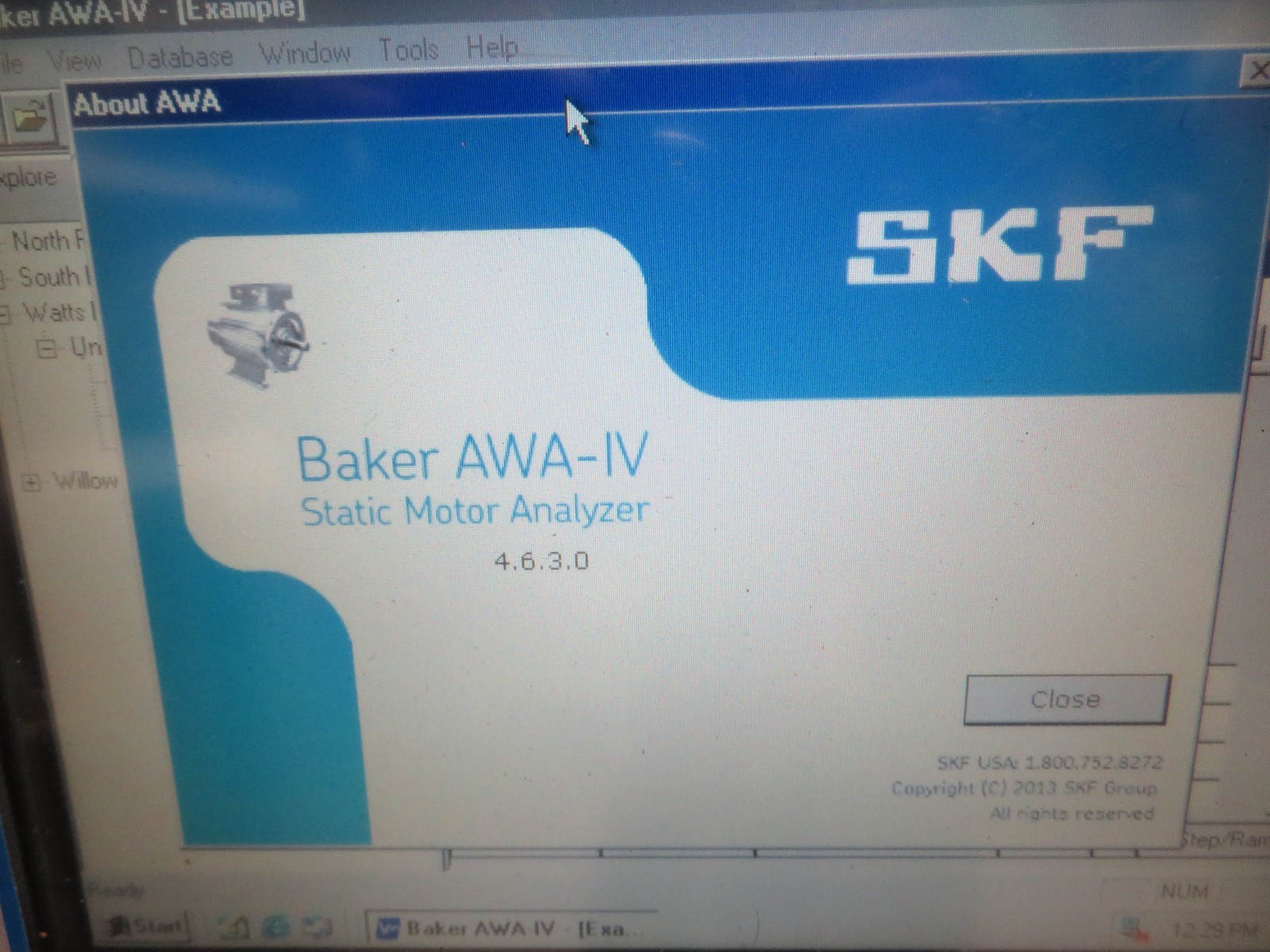

Microsoft Windows 10 embedded operating system

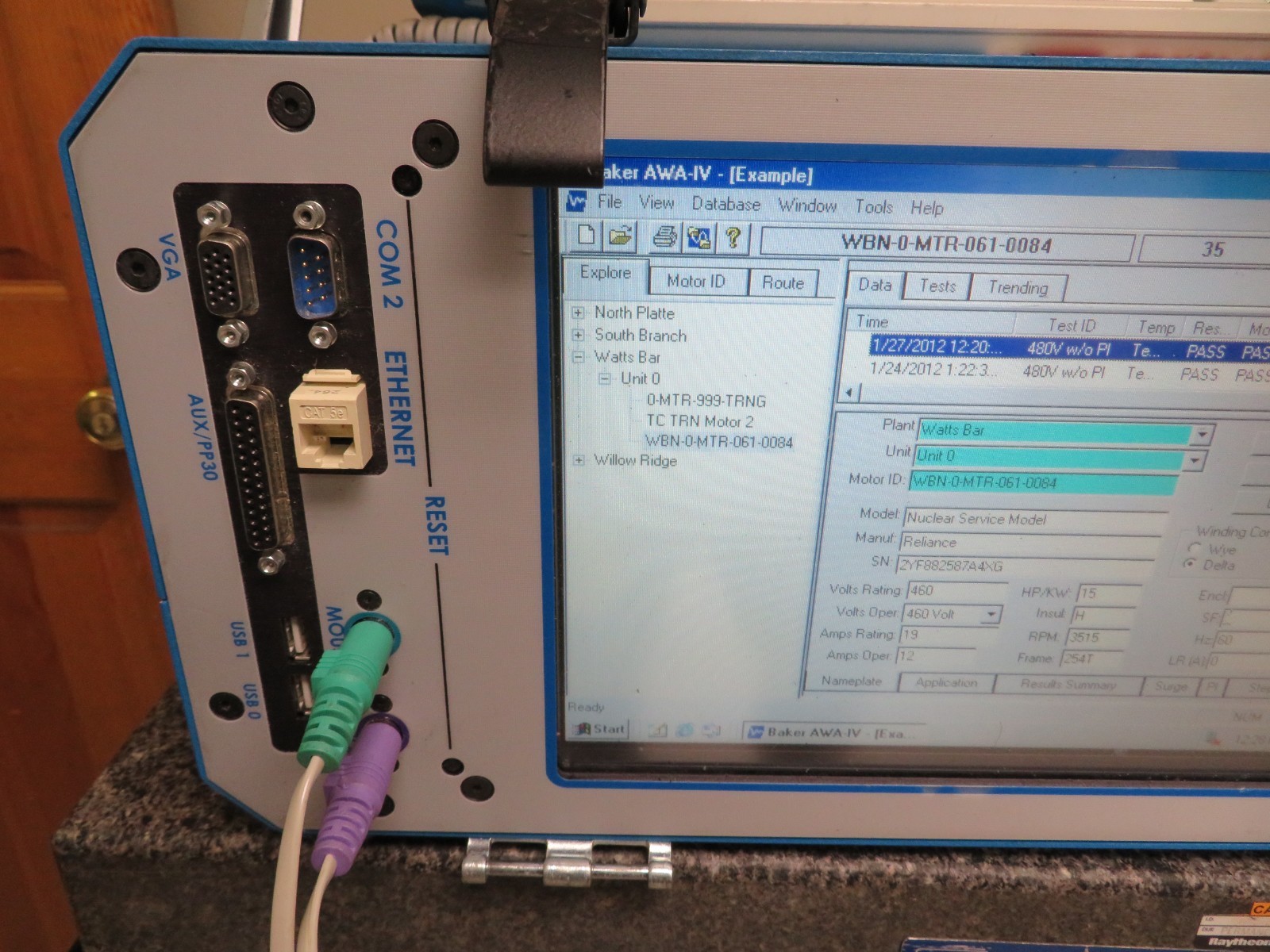

USB port for data transfer and printing with Windows 10 plug-and-play printers
The Baker AWA-IV static motor analyzer automatically performs repeatable, user-programmable tests to thoroughly assess the strength of a motor’s insulation and circuit. The AWA-IV is also used to assure quality of motor rebuilds or new production motors before they are placed into service.

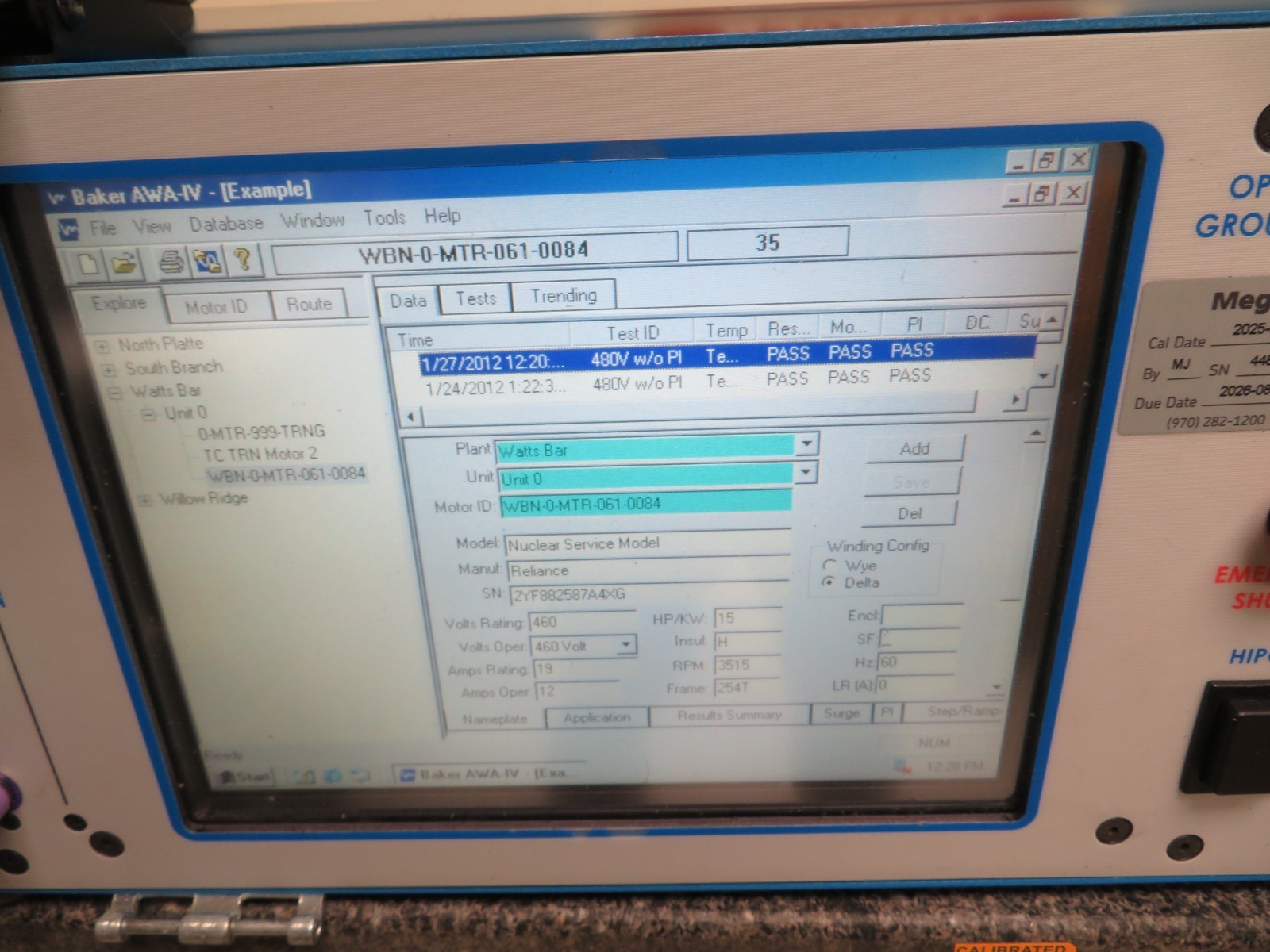

The Baker AWA-IV is a simple-to-use test instrument with an intuitive, touch screen user interface. It delivers accurate, repeatable results regardless of the skill level of a given operator. It easily detects problems that low voltage testers cannot find by performing a comprehensive set of both high- and low-voltage tests. Results are presented in simple, easy-to-understand graphs and reports that give motor maintenance professionals the information they need to minimize costs and unplanned downtime. The ability to apply identical tests to a given motor over a long period allows trends to be analyzed, revealing the degradation of insulation over the motor’s lifetime. This allows maintenance professionals to predict when a motor may fail, and plan its replacement accordingly.

The AWA-IV offers computer control and waveform monitoring advantages over equivalent manually controlled instruments. The analyzer’s embedded computer conducts the tests, stores the results, and continuously monitors voltage levels while testing. If the analyzer detects a weakness in the insulation during a given test, the test is interrupted, the operator is alerted and all test parameters at the time of the interruption are reported.

This unit is onsite, is setup and we welcome for you to come inspect this unit.

Please email if you have any questions or would like to speak with someone in person. Call Bullseye Calibration in Bloomfield, CT to discuss the machine or payment options.

SHIPPING POLICY:

We sell sensitive test and measurement equipment here on Ebay.  We strive for 5-star service, so we invest a great deal of time and care to package all of our items safely for shipment.  This attention to detail means it may take up to 10 days for us to prepare and ship your units out of our facility. We want to support you throughout the transaction and want you to be satisfied, so please to contact us at Bullseye Calibration in Bloomfield, CT with any questions or concerns.  We do out best to ship quickly, but never at the expense of quality delivery.



RETURN POLICY:

All units are being sold “WITH A 30 DAY RIGHT OF RETURN”. The auction description is written as a guide, we strongly recommend that you come view and test the units at our facility. Feel free to give us a call at Bullseye Calibration in Bloomfield, CT, and we will help answer any questions that you may have, before you purchase an item. We do not accept returns so please call with any questions that you have BEFORE you bid.

Additional information
Weight 65.00 lbs
Dimensions 24.00 × 24.00 × 18.00 in
Brand

MPN

Condition Seller refurbished
Notes Rebuilt and Calibrated by Megger/Baker instruments. Includes the certificate of calibration
