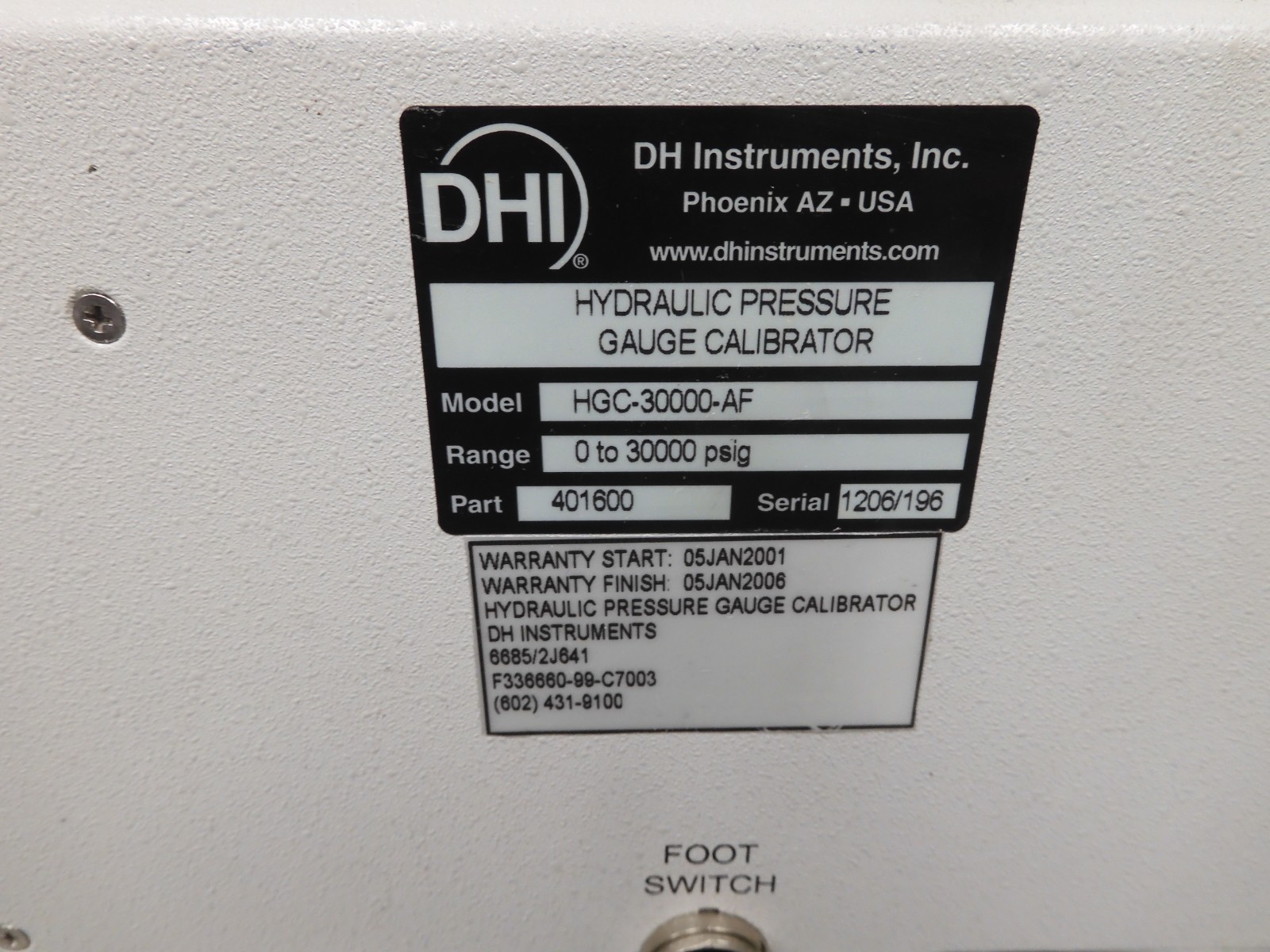

- 2X Hydraulic Pressure Gage Calibrator. Model HGC-30000-AF, Range 0-30,000 psig, Part#: 401600

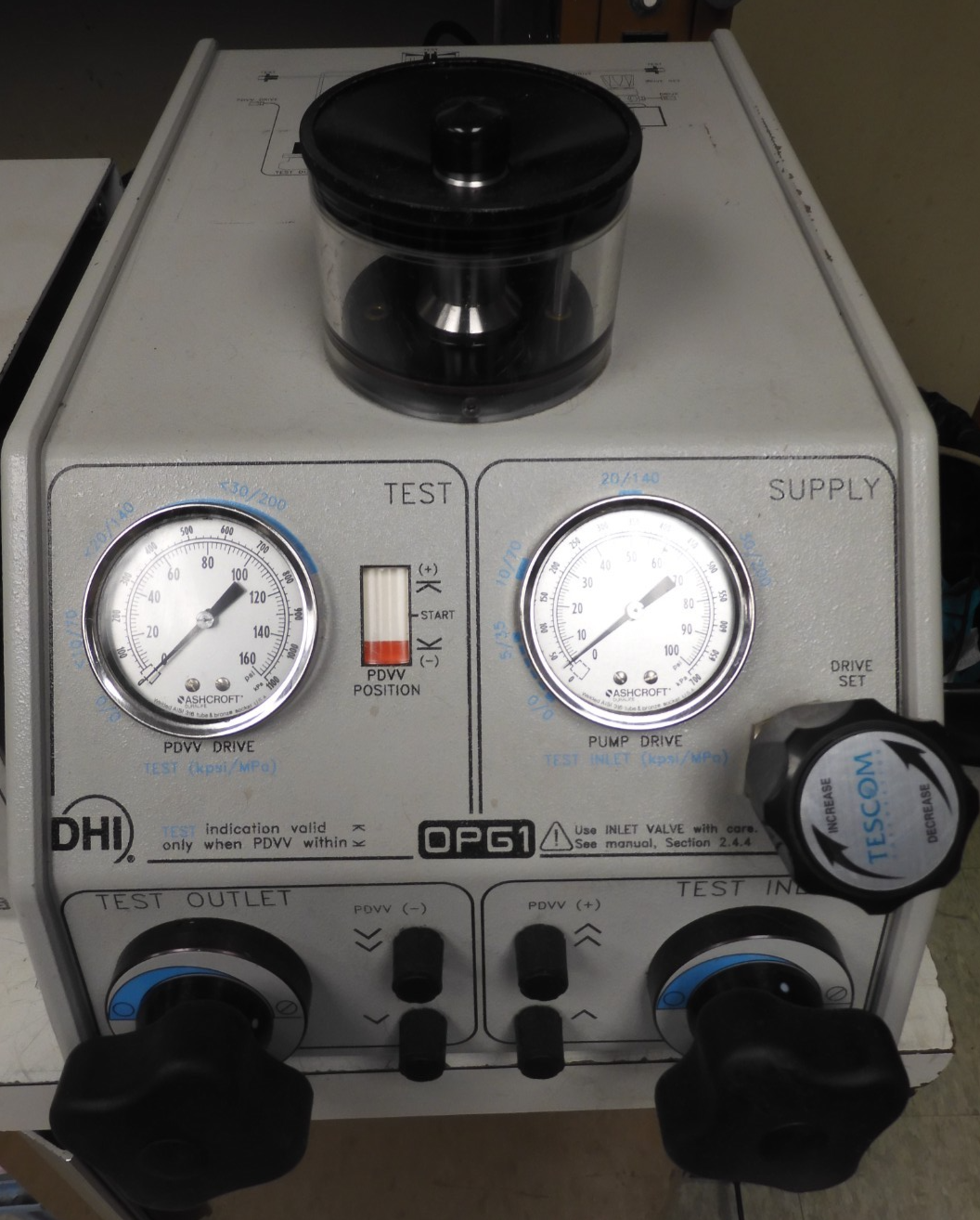

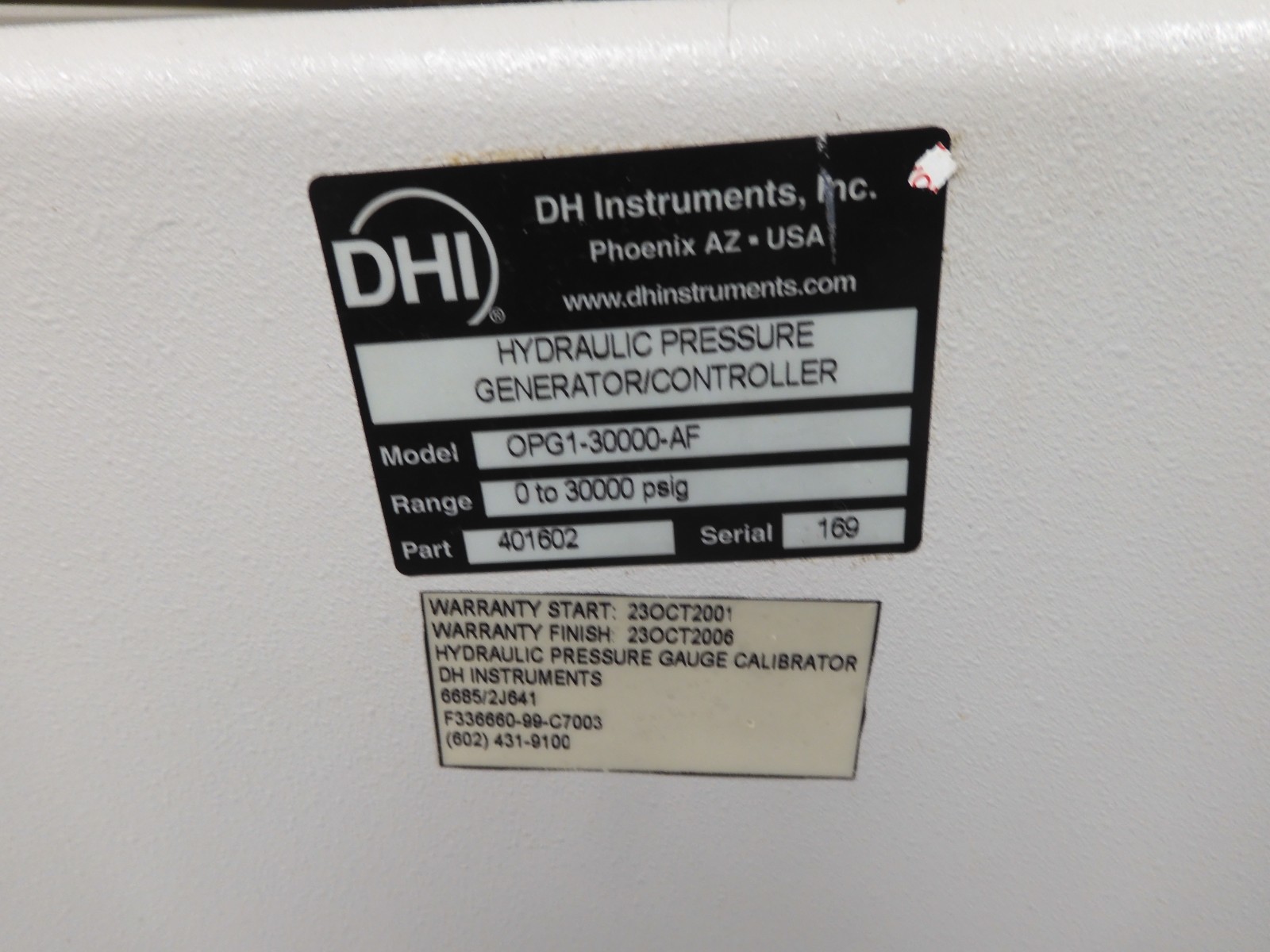

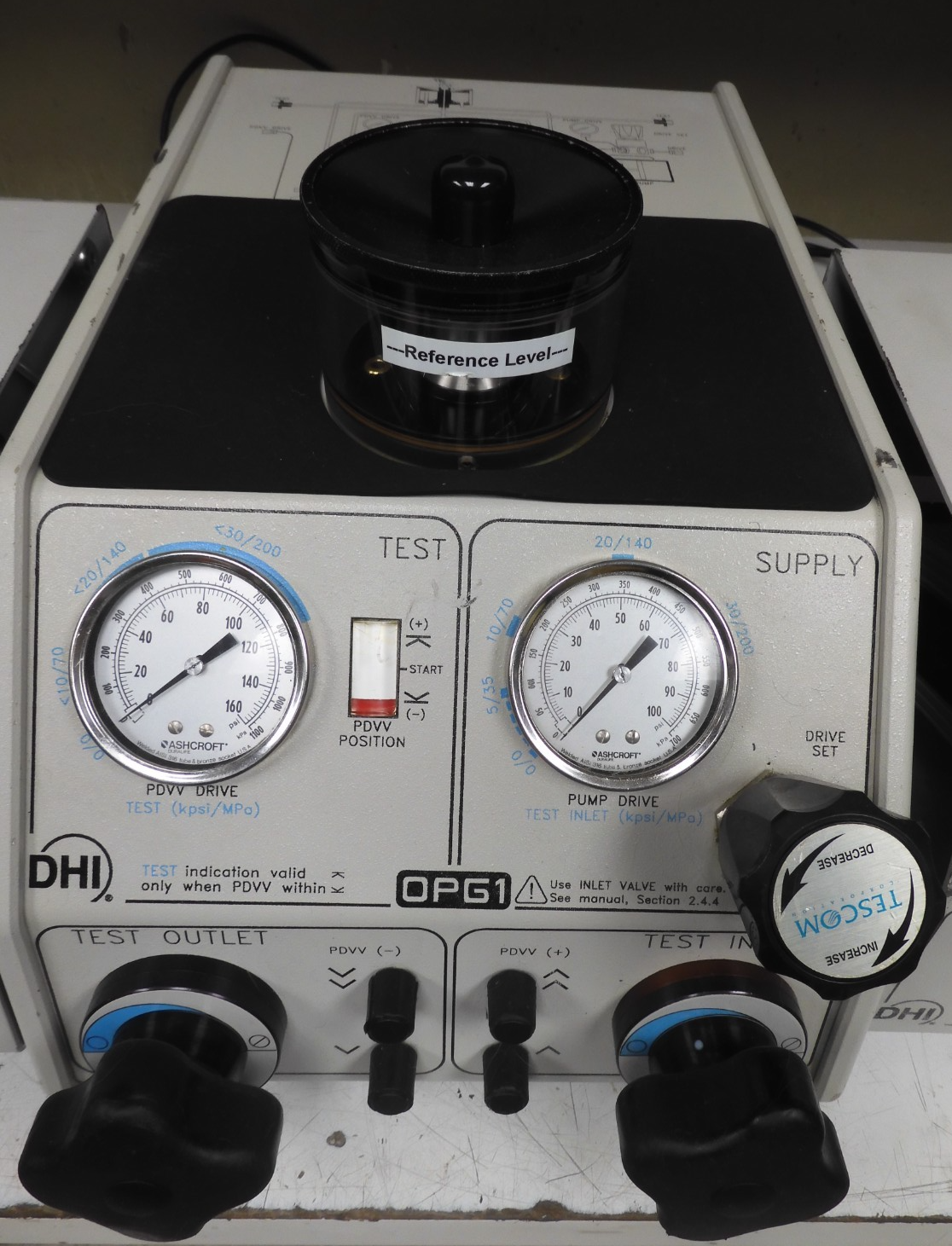

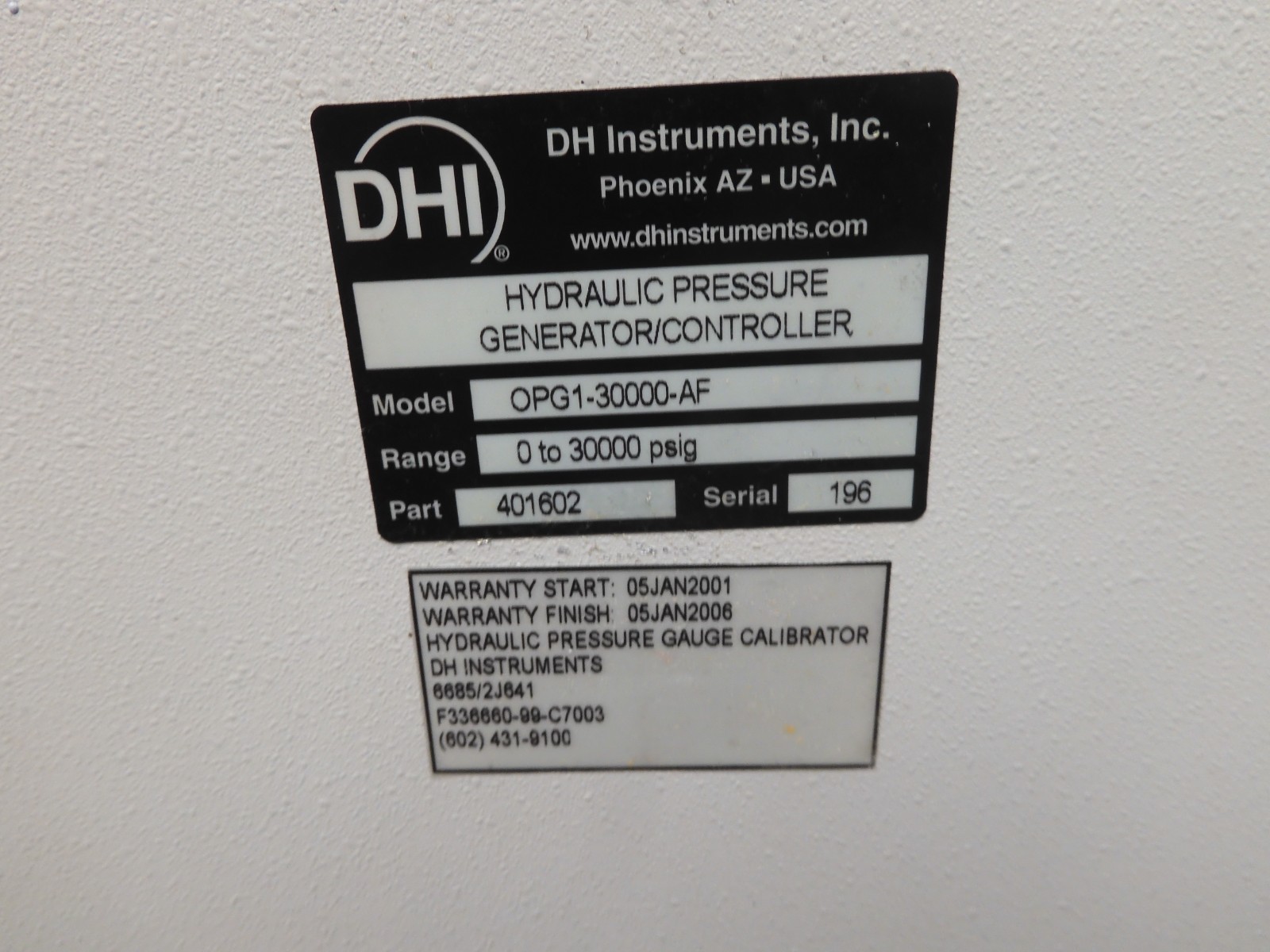

- 2X Hydraulic Pressure Generator/Controller. Model OPGI-30000-AF, Range 0-30,000 psig, Part# 401602
| Power Requirements: | 85 to 264 VAC, 47 to 440 Hz, 18 VA max consumption |
| Operating Temperature Range: | 15 to 45 °C |
| Storage Temperature Range: | -20 to 70 °C |

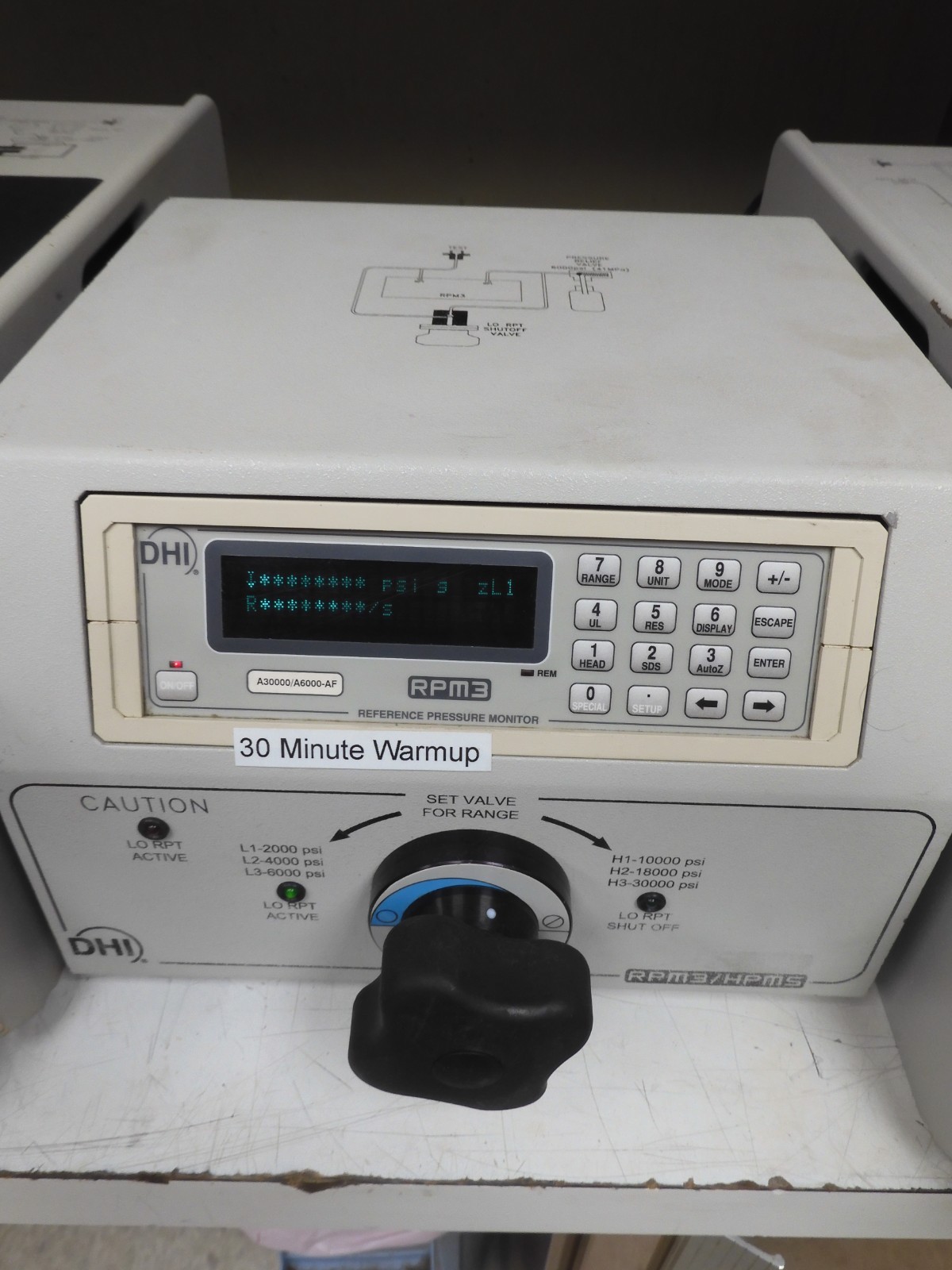

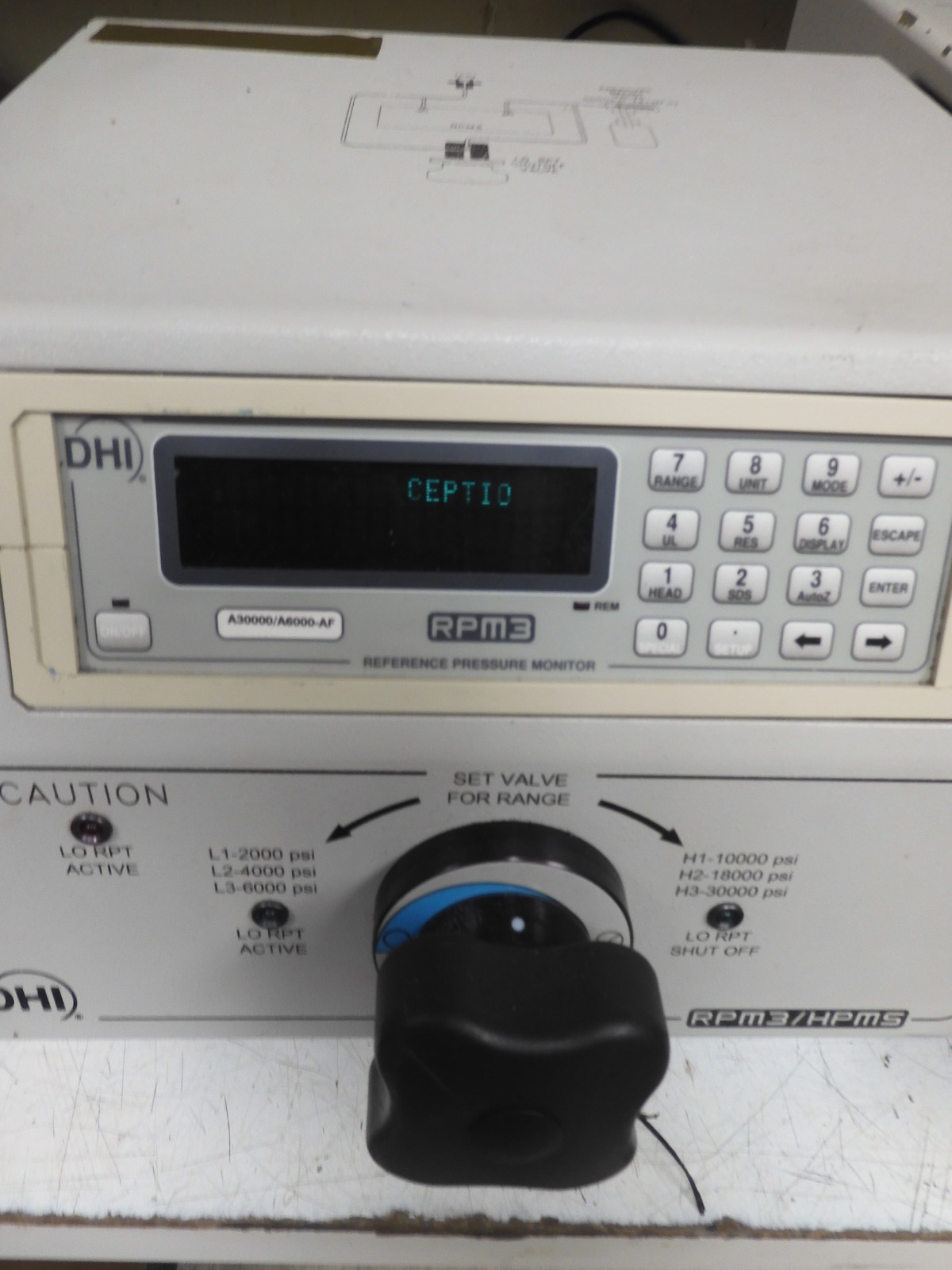

| Weight: RPM3: | 3.5 kg (7.7 lb) |
| HPMS: | 5.8 kg (12.8 lb) |
| RPM3/HPMS: | 9.3 kg (20.5 lb) |
| Dimensions: | 21.5 cm H x 29 cm W x 38 cm D |
| (8.5 in. x 11.5 in. x 15.0 in.) approx. | |
| Microprocessor: | Motorola 68302, 16 MHz |
| Communication Ports: | RS-232 (COM1), RS-232 (COM2), IEEE-488 |
| Pressure Ranges: | 2 000 psi (14 MPa), 4 000 psi (28 MPa), 6 000 psi |
| (42 MPa), 10 000 psi (70 MPa), 18 000 psi (126 MPa), | |
| 30 000 psi (200 MPa) gauge and absolute. | |
| Operating Medium: | Oil (Di-ethyl hexyl sebacate) |
| Pressure Connections: | |
| Test port (RPT > 10 000 psi): DH500 (gland and collar type for coned and left hand threaded tube, equivalent to AE F250C, HIP HF4, etc.) | |
| Pressure Limits: | |
| Maximum working pressure: | 30 000 psi (214 MPa) |
| Maximum pressure w/o damage: | 37 000 psi (255 MPa) |
Please email if you have any questions or would like to speak with someone in person. Reach us at Bullseye Calibration in Bloomfield, CT to discuss the machine.
SHIPPING POLICY:
We sell sensitive test and measurement equipment here on eBay. We strive for 5-star service, so we invest a great deal of time and care to package all of our items safely for shipment. This attention to detail means it may take up to 10 days for us to prepare and ship your units out of our facility. We want to support you throughout the transaction and want you to be satisfied, so find us at Bullseye Calibration in Bloomfield, CT with any questions or concerns. We do our best to ship quickly, but never at the expense of quality delivery.
RETURN POLICY:
All units are being sold “As-Is, Where Is”. The auction description is written as a guide; we strongly recommend that you come view and test the units at our facility. Feel free to find us at Bullseye Calibration in Bloomfield, CT, and we will help answer any questions that you may have, before you purchase an item. We do not accept returns so please find us with any questions that you have BEFORE you bid.
